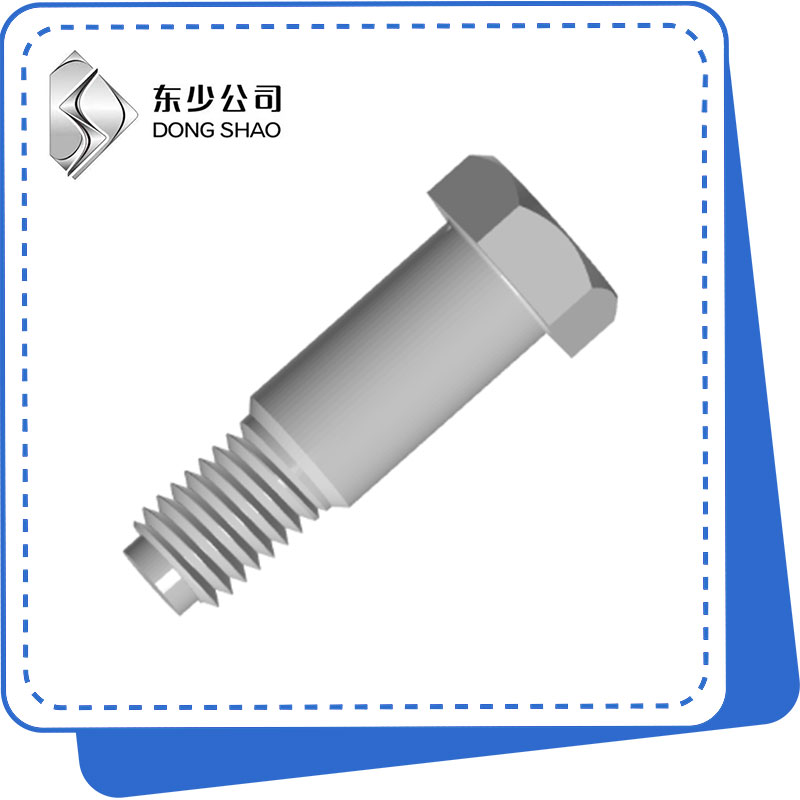

Sexangonis apta fulmina cum Long Threaded canis Point

DONGSHAO unus est ducens Sinarum Hexagon Opportunum clutis cum Longo bracteolae Dog Points artifices, praebitores et exportatores.

Mitte Inquisitionem

depictio producti

Hebei Dongshao Fastener Vestibulum Co, Ltd. notus est elit et opificem hexagoni apta fulmina cum puncto canis liciato longo in Sinis.

Its production of hexagon fit bolts with long threaded dog point have the following characteristics:Strong fastening force, can withstand strong tension, and much higher than the general hex bolt;Anti-loosening, using locking nut or anti-loosening ring design, to ensure that the connection will not be loose due to vibration;Corrosion resistant, can use stainless steel or special surface treatment bolts, suitable for use in harsh environments;Long life, long service life, can reduce replacement and maintenance sumptibus.

Nonnullae applicationes typicae sunt hexagoni aptae fulmina cum puncto canino liciato: Constructio campi, campi electronici, campi mechanici, compages campi ferrei, industria autocineti, etc.

Product Parameter

(mm)	M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M36	M42	M48
P	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	4	4.5	5
b max	11.5	14.5	17	19	23	26	28	29	32	35	38	46	50	59	63
b min	9.5	12.5	15	17	21	24	26	27	30	33	36	44	48	57	61
ds max	7	9	11	13	15	17	19	21	23	25	28	32	38	44	50
ds min	6.964	8.964	10.957	12.957	14.957	16.957	18.948	20.948	22.948	24.948	27.948	31.938	37.938	43.938	49.938
s max	10	13	16	18	21	24	27	30	34	36	41	46	55	65	75
s min	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38	40	45	53.8	63.8	73.1
k min	3.85	4.85	5.85	6.82	7.82	8.82	9.82	10.78	11.78	12.78	14.65	16.65	19.58	22.58	25.58
k max	4.15	5.15	6.15	7.18	8.18	9.18	10.18	11.22	12.22	13.22	15.35	17.35	20.42	23.42	26.42
r min	0.25	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1.2	1.6
dp	4	5.5	7	8.5	10	12	13	15	17	18	21	23	28	33	38
z	1.5	1.5	2	2	3	3	3	4	4	4	5	5	6	7	8
e min	11.05	14.38	17.77	20.03	23.35	26.75	30.14	33.53	37.72	39.98	45.2	50.85	60.79	72.02	82.6
